Parameter

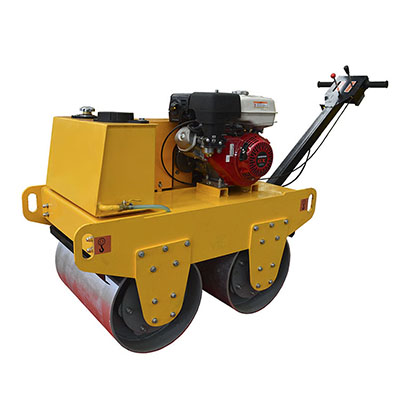

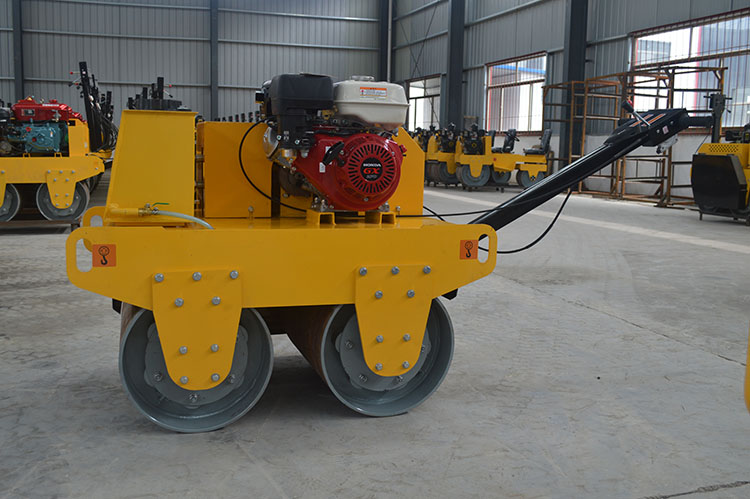

Model	YH-YLS600A	YH-YLS600B	YH-YLS600C
Type of engine	Gasoline engine, air cooled four stroke	Diesel engine, air cooled four stroke	Water-cooled diesel engine
Power	9hp,3600rmp	6hp,3600rmp	8hp/2300hpm
Oil tank	3.5L	3.5L	4.5L
Fuel consumption rate	395g/kw·h	280g/kw·h	313g/kw·h
Engine type	Honda GX270	CHANGFA CF178FE	CHANGCHAI R180
Walking speed	0-6km/h	0-6km/h	0-6km/h
Grade ability	30%	30%	0.3
Nominal amplitude	0.5mm	0.5mm	0.5mm
Vibration frequency	75Hz	75Hz	75Hz
Centrifugal force	20kN*2	20kN*2	20kN*2
Water tank	20L	20L	20L
Driving mode	Hydraulic pump and motor - dual wheel drive	Hydraulic pump and motor - dual wheel drive	Hydraulic pump and motor - dual wheel drive
vibration	Automatic vibration - dual wheel vibration	Automatic vibration - dual wheel vibration	Automatic vibration - dual wheel vibration
Wheel Width (Front, Rear)	600mm	600mm	600mm
Steel wheel diameter (front, rear)	426mm	426mm	426mm
Total length (handrails laid flat)	2450mm	2450mm	2450mm
Total width	780mm	780mm	780mm
Total height (handrail standing)	1800mm	1800mm	1800mm
Package size	1350X850X1250mm	1350X850X1250mm	1350X850X1250mm
Weight	530kg	550kg	590kg
