Tiller Machine

2WD Mini Tiller

Video

Please Contact Us

  Whatsapp:008613276388568(Click Here Contact Us)

 Skyp  : +8613276388568

 Email:service@ulmachine.com

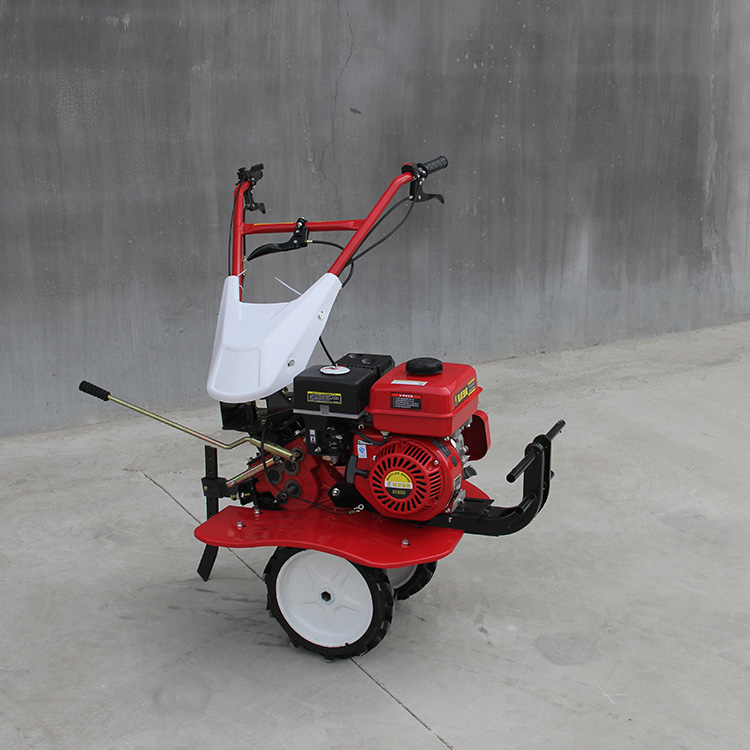

2WD Mini Tiller(图1)

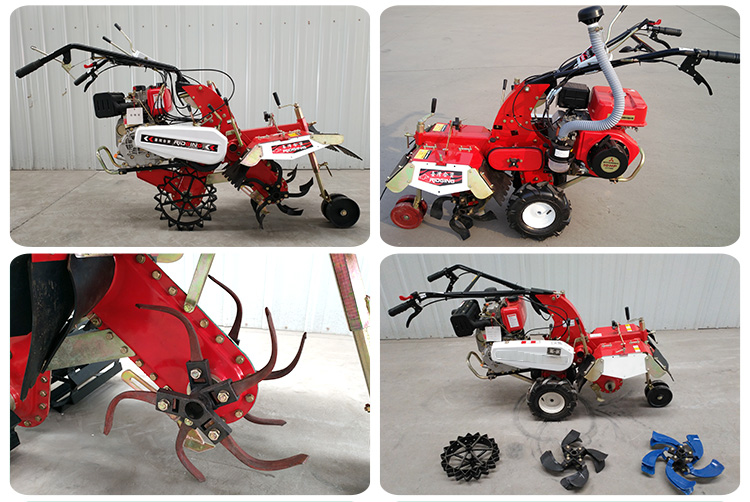

2WD Mini Tiller(图2)

mini tiller is powered by a small diesel engine or a gasoline engine, and has the characteristics of light weight, small size and simple structure. Micro tillage machines are widely used in plains, mountains, hilly drylands, paddy fields, orchards, etc. Equipped with corresponding equipment for rotary tillage, weeding and other operations, the micro tillage machine can be exercised freely in the field, which is convenient for users to use and store, eliminating the trouble that large agricultural machinery cannot enter the mountainous fields, and is the replacement of cattle farming by the majority of farmers.

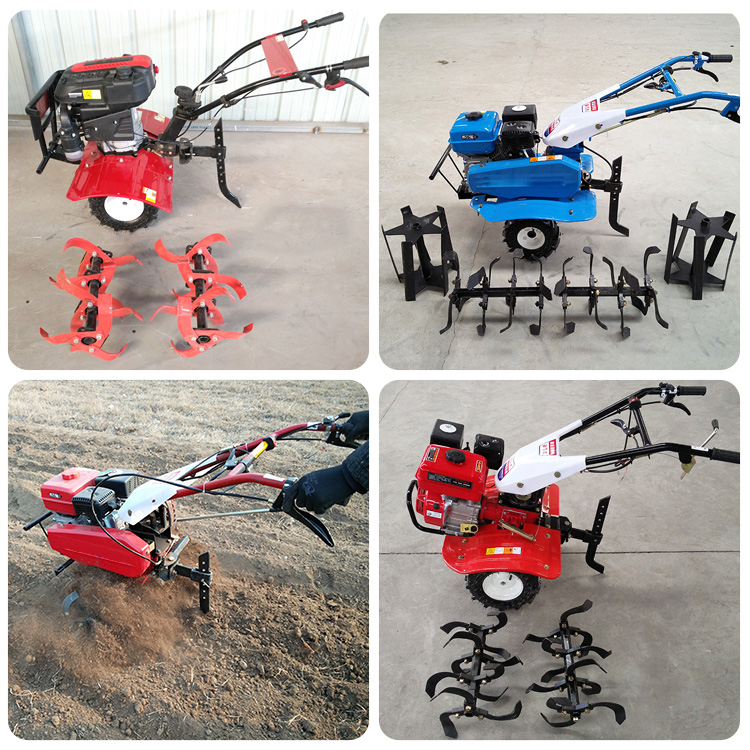

2WD Mini Tiller(图3)

Features of New design Mini Mulching Crus Mini Tiller Cultivator with great price

1. Adjustable belt tight and power
2. sealed belt outer cover-antislip
3. handle flexible accroding to the users and the height of crops can be adjusted, suitable for operation in any direction, labor-saving
4. depth limited wheel(adjustable height)
2WD Mini Tiller(图4)

2WD Mini Tiller(图5)



Advantage for farm machine gasoline front Small Powe Mini Tiller Cultivator and weeding equipment:

mini power Multifunctional farm tiller, mini power Multifunctional farm tiller rotary tillage and ridging completion, greatly improve the efficiency of tillage, small machines have a big use!!!
1.Easy to operate and convenient to maintain.
2.Suitable for using in the plain, hilly ground, paddy field, arid land and farmland.
3.Not only reduce the intensity of labor but also increase the efficiency of the producing.
4.Multi-functional, light-weight, well-designed with superior quality.
this type of the walking tractor traction drive dual-purpose walking tractor. The machine not only widely used operating in the plains, mountains and hills and rice fields, and equipped with a specially designed lower rack, more suitable for orchards, vegetable fields, forests, etc. agronomic job. Can also do a fixed power use, and is equipped with lighting equipment, operating at night. The machine is the domestic advanced level.





2WD Mini Tiller(图6)

Model
DT173
DT170
DT173
DT170
Matched power
4.0kw
4.0kw
4.0kw
4.0kw
Overall size
1680*740*640mm
1680*740*640mm
1720*740*600mm
1660*740*600mm
Weight
81kg
66kg
92kg
82kg
Working width
74cm
74cm
74cm
74cm
Efficiency
≥0.1hm²/h.m
≥0.1hm²/h.m
≥0.1hm²/h.m
≥0.1hm²/h.m
Working depth
≥12cm
≥10cm
≥12cm
≥10cm
Cooling method
Air-cooled
Air-cooled
Air-cooled
Air-cooled
Power type
Diesel
gasoline
Diesel
gasoline
Position
Front
Front
Rear
Rear

 mini tiller is suitable for mountain, hill and narrow field operation. Mainly used for: paddy field, dry land, tea garden, orchard, forest garden and so on. Different tools can be selected for: rotary tillage, intertillage, weeding, soil loosening, fertilization operations. Features: four-weel drive transmission, light weight, small volume, use more convenient and labor-saving advantages. In the actual operation of mini tiller, our products are the most labor-saving, and our models of four-wheel drive mini tiller in the same Chinese industry is the most complete and technological innovation is among the best of the world.
2WD Mini Tiller(图7)
