Farm Dump Truck

Video

Please Contact Us

  Whatsapp:008613276388568(Click Here Contact Us)

 Skyp  : +8613276388568

 Email:service@ulmachine.com

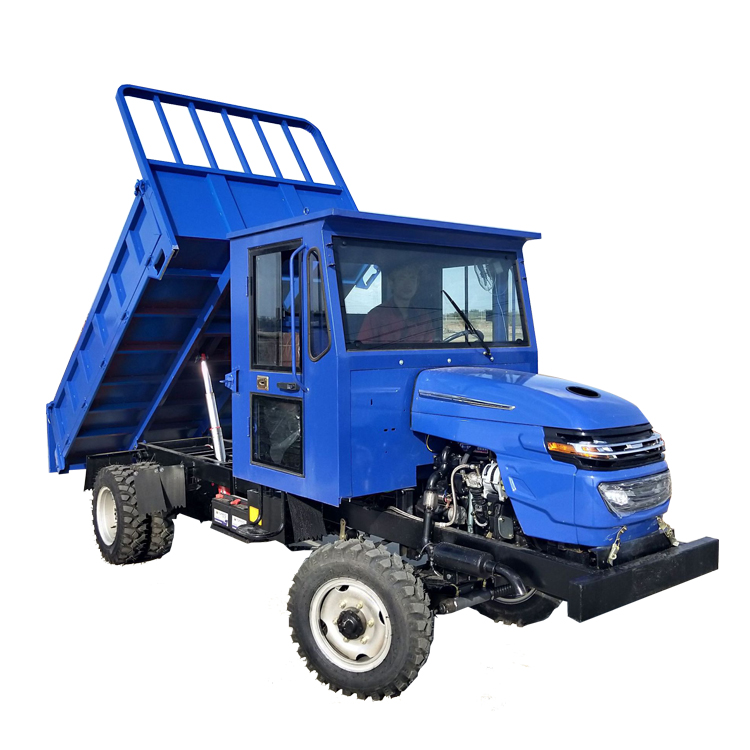

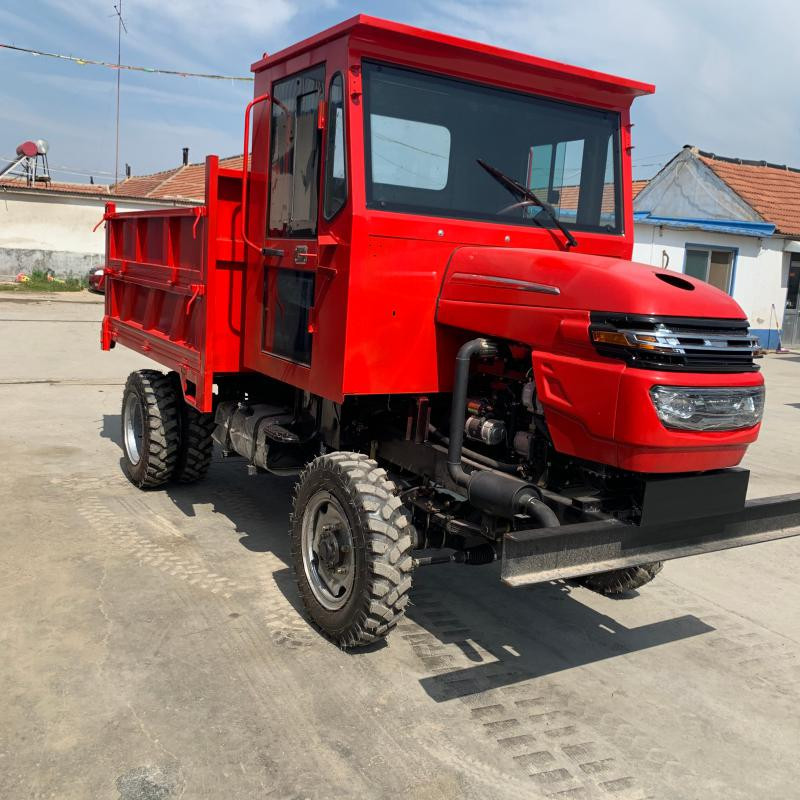

Farm Dump Truck(图1)

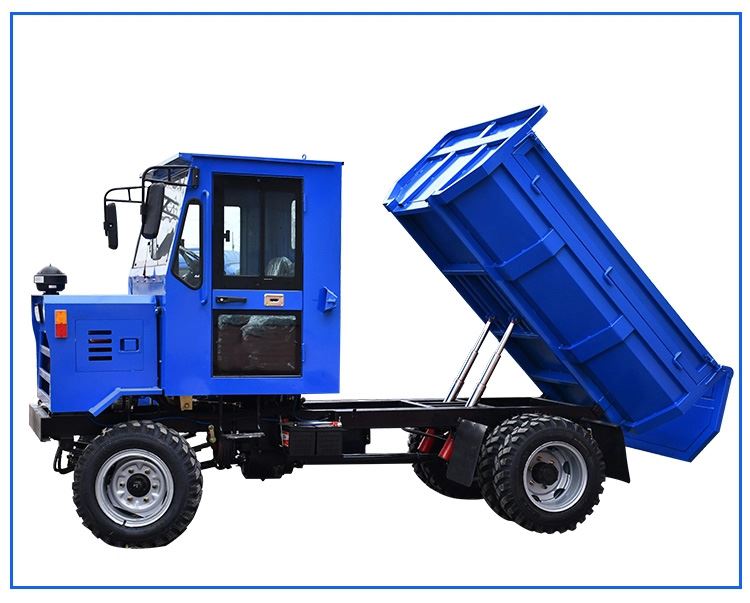

Farm Dump Truck(图2)



Parameter

Model
Square head (single cylinder)
DB-253
Square/round head (double cylinder)
DB-385
Square/round head (four cylinders)
DB-586
Square/round head
(four-cylinder pressurized)
DB-786
Square/round head
(four-cylinder pressurized)
DB-1026
colour
Five colors: red, blue, army green, yellow, green
Engine type
Diesel engine: single cylinder 25/28/32 hp
Diesel engine: double cylinder 38hp
Diesel engine: four-cylinder
58 hp
Diesel engine: four-cylinder supercharged
78 hp
Diesel engine: four-cylinder 4102 supercharged 102 hp
Gearbox model
10 Gearbox with high and low speed
130 Gearbox with high and low speed
130 Gearbox with high and low speed
140 Gearbox with high and low speed
145 Gearbox with high and low speed
Gear
7/10 speed
10/12 speed
10/12 speed
10/12 speed
10/12 speed
Drive method
All-wheel drive
All-wheel drive/Time-sharing four-wheel drive
Load
3T
3-5T
6-12T
6-12T
6-12T
Tyre model
700-16/750-16/825-16 customizable
700-16/750-16/825-16 customizable
700-16/750-16/825-16 customizable
700-16/750-16/825-16 customizable
700-16/750-16/825-16 customizable
Number of tires
4 rounds
6 rounds
6 rounds
6 rounds
6 rounds
Front/rear axle
212/130
130/ISUZU
130/ISUZU
ISUZU/ISUZU
ISUZU/1061 & ISUZU/1080
Steering method
Hydraulic power steering
Hydraulic power steering
Hydraulic power steering
Hydraulic power steering
Hydraulic power steering
Unloading method
Double-cylinder hydraulic semi-automatic unloading
Battery specifications
Double battery 24V (60 mA)
Double battery 24V (60 mA)
Double battery 24V (60 mA)
Double battery 24V (60 mA)
Double battery 24V (60 mA)
Brake
Oil brake
Oil brake
Oil brake
Oil brake
Oil brake
Truck body type
Agricultural carriage (small model)/(large model)/Grain loading wagon/Flatbed trailer
Cargo box size
2200*1800*450
2200*1700*450
2200*1800*500
2200*1800*500
2200*1800*500
Overall dimension (LxWxH)(mm)
3900*1800*2300
3900*1700*2300
3900*1800*2300
3900*1800*2300
3900*

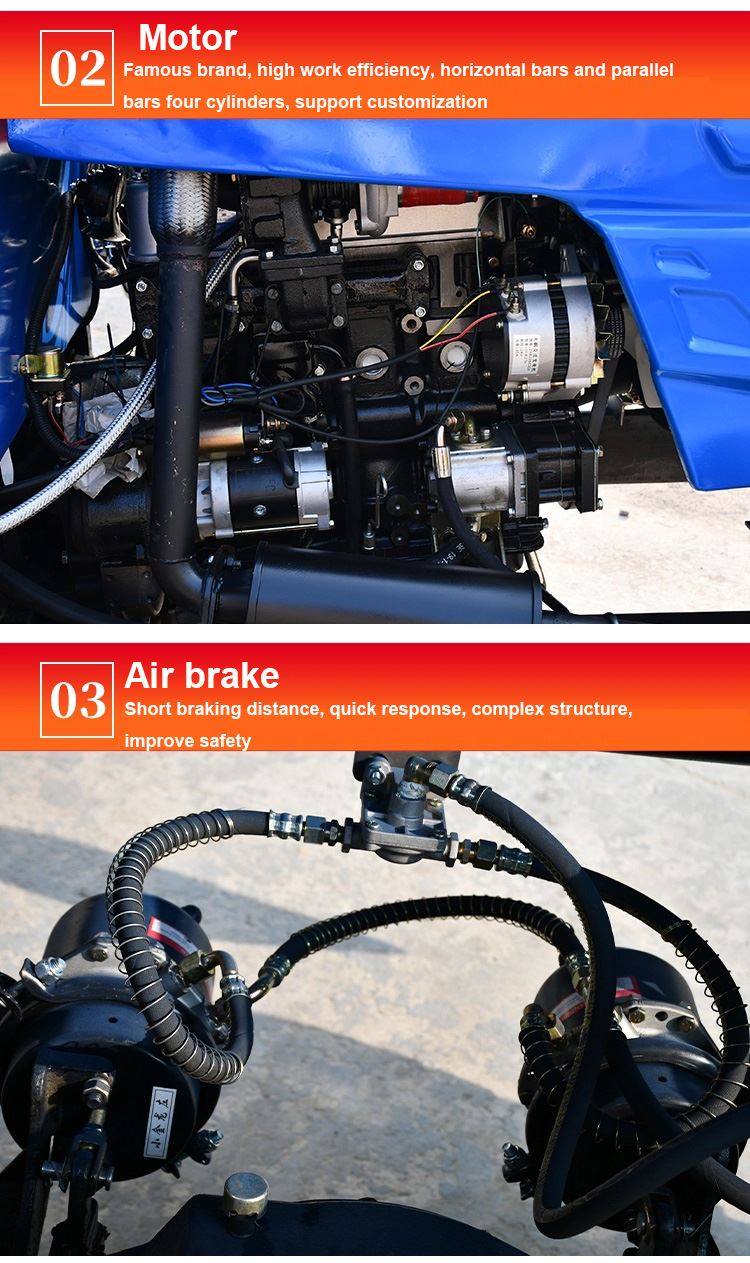

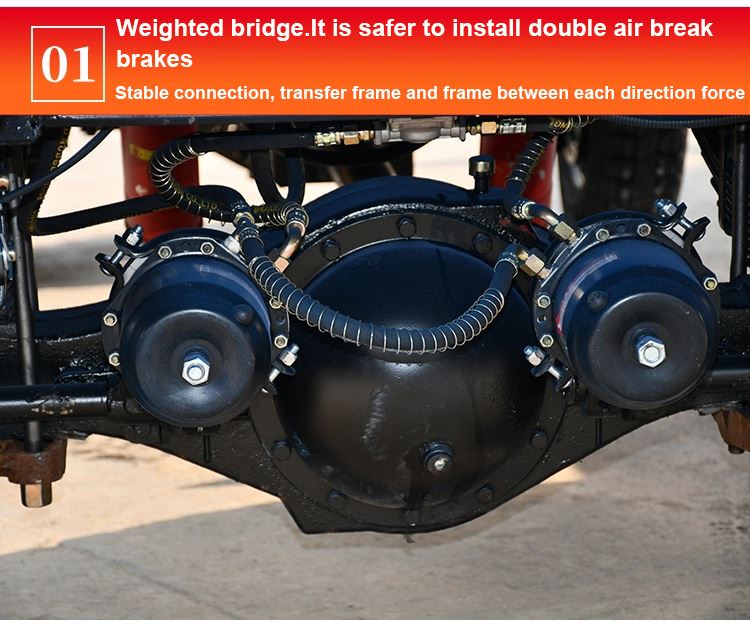

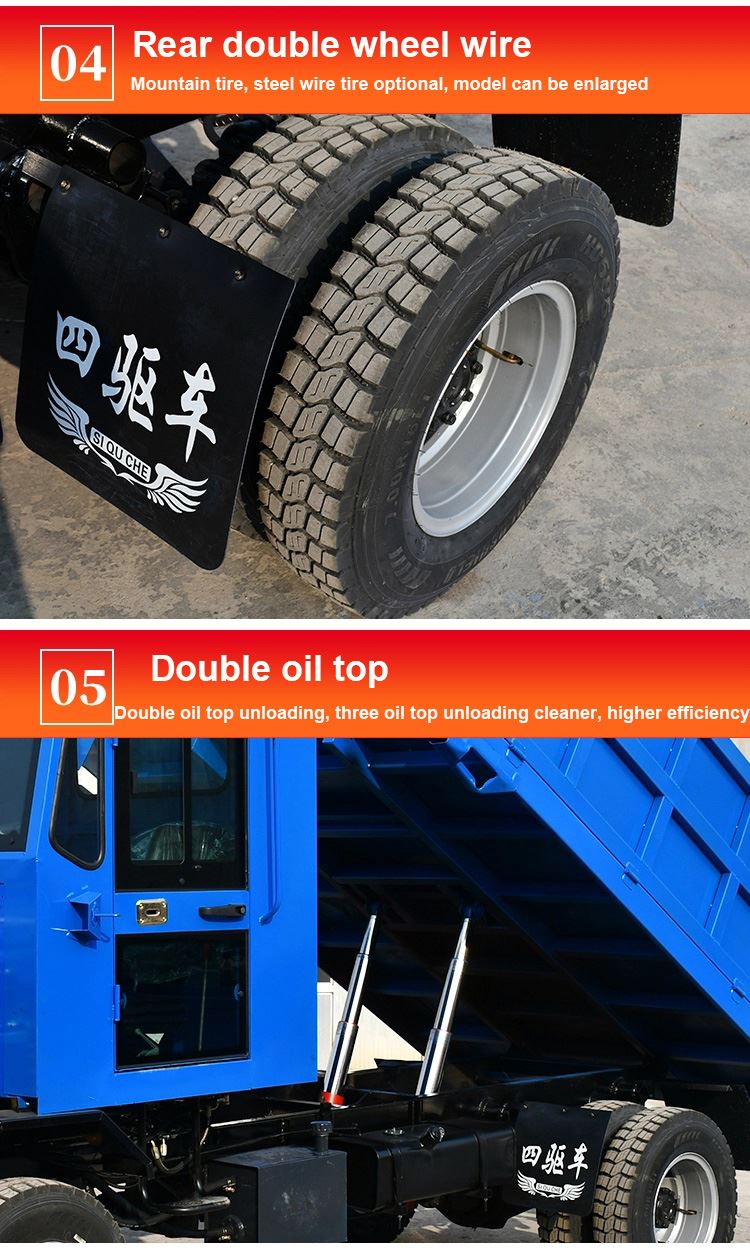

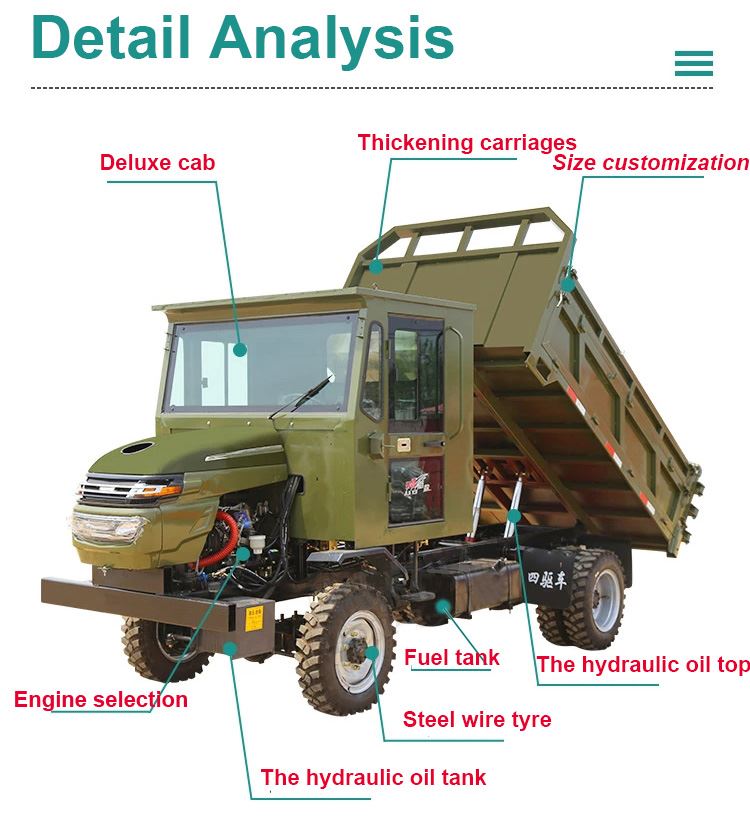

Farm Dump Truck Details

Farm Dump Truck(图3)

Farm Dump Truck(图4)

Farm Dump Truck(图5)

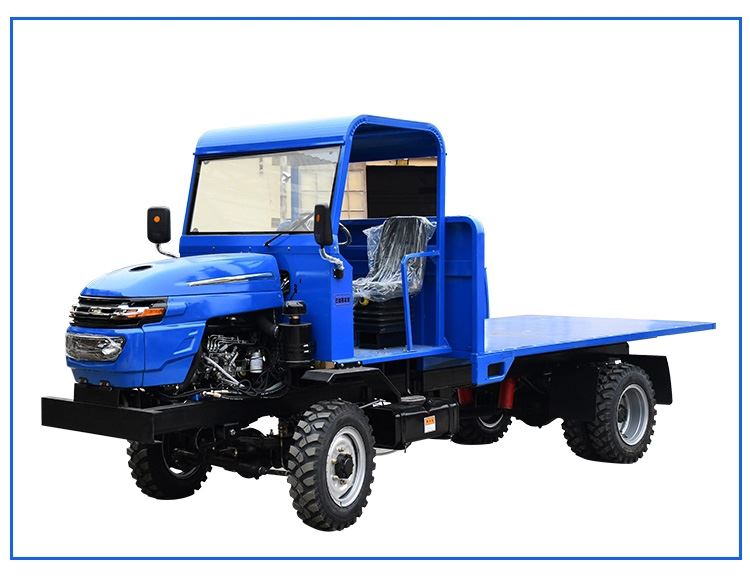

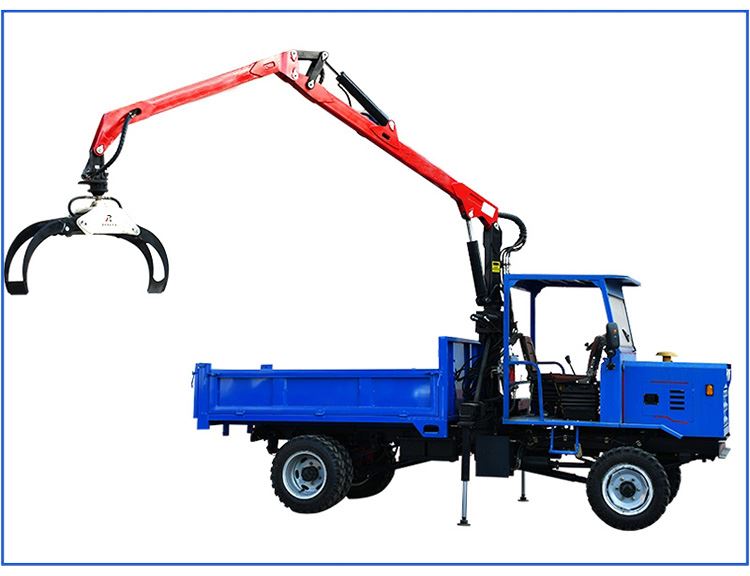

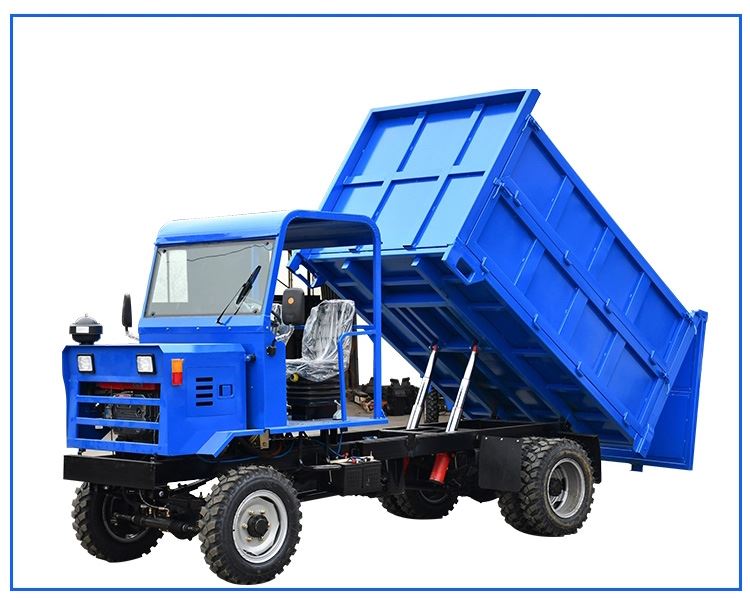

Many Types

Farm Dump Truck You Can Choose

Farm Dump Truck(图6)

Farm Dump Truck(图7)

Farm Dump Truck(图8)

Farm Dump Truck(图9)

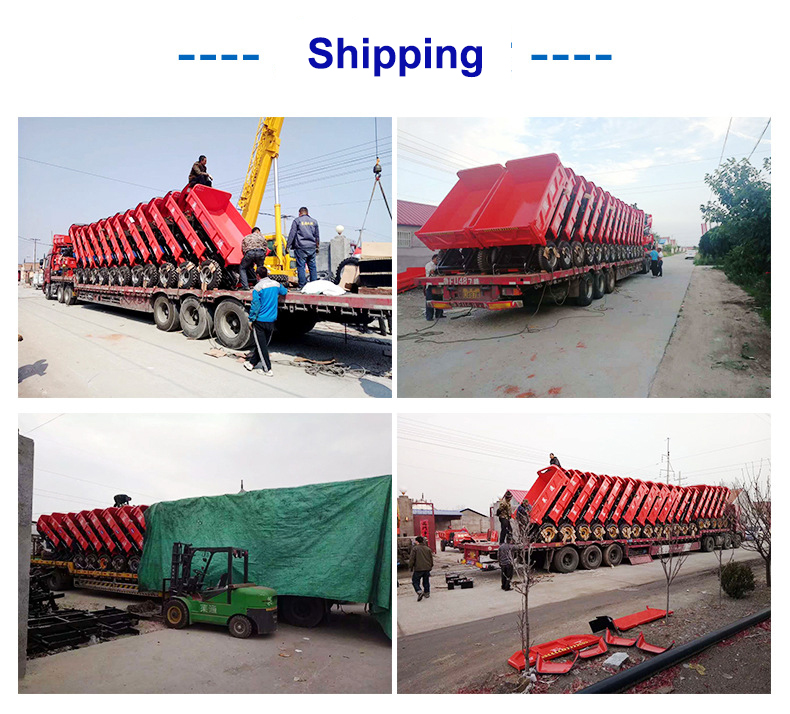

Farm Dump Truck Shipping


Farm Dump Truck(图10)


Farm Dump Truck Application

Farm Dump Truck(图11)
