Self Loading Concrete Mixer Truck

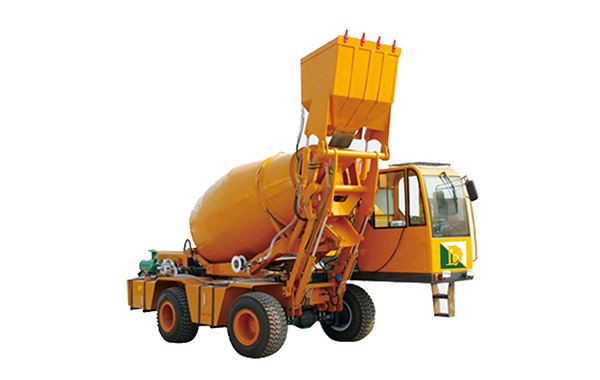

2.0m3 Self Loading Mobile

INQUIRY

Self Loading Concrete Mixer Truck Series

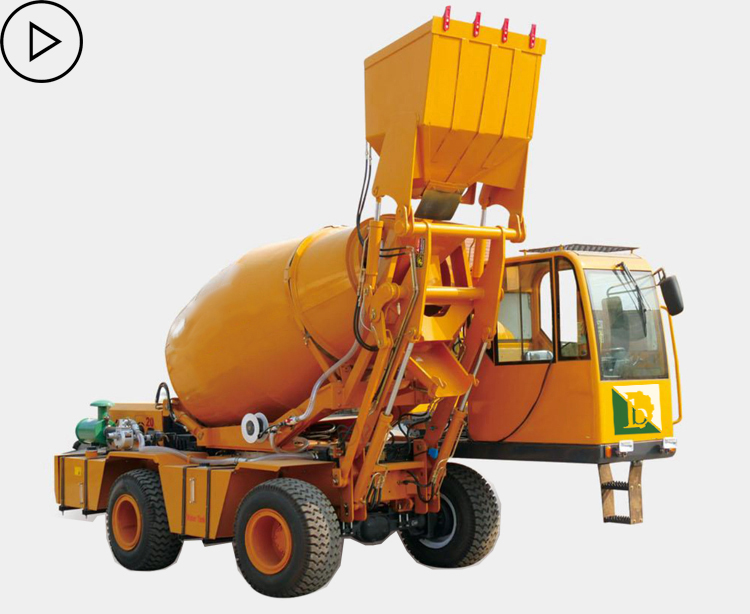

Click For Video

Specification

Model	JBC2.0/2.0R
Engines	YUCHAI/Commins/Customized
Motor Powder	78KW
Drive Type	4*4
Tyre Model	1670-20

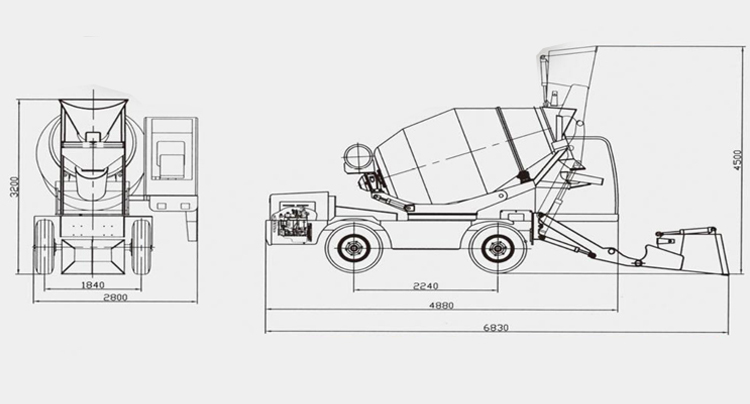

Dimension	4,8802,8003,150mm
Max. Speed	25km
Operating Weight	6,500kg
Output	6-10CBM/Hr
Drum Capacity	2.0CBM
Tank Rotation Angel	Rotation free/Rotation 180°/Rotation 270°
Nude Packing	1 Set Per 40HQ

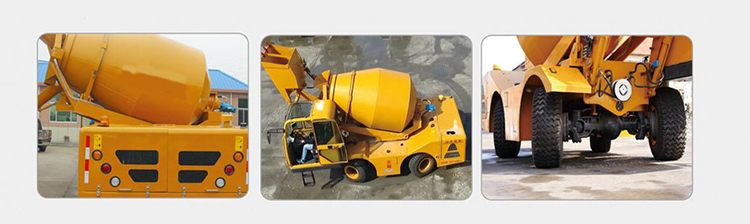

Self Loading Concrete Mixer Truck Introduction

Self loading concrete mixer truck is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture.

Equipped with powerful YUCHAI, 78 kw diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer truck is just like a truck and the operator can drive it to where it needs to go.

Our self loading concrete mixer truck is very convenient for loading material, such as cement, aggregate, stone. The mixing unit is slewing hydraulically through 270° for high discharge over 2 m on the four sides of the vehicle.

The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations.

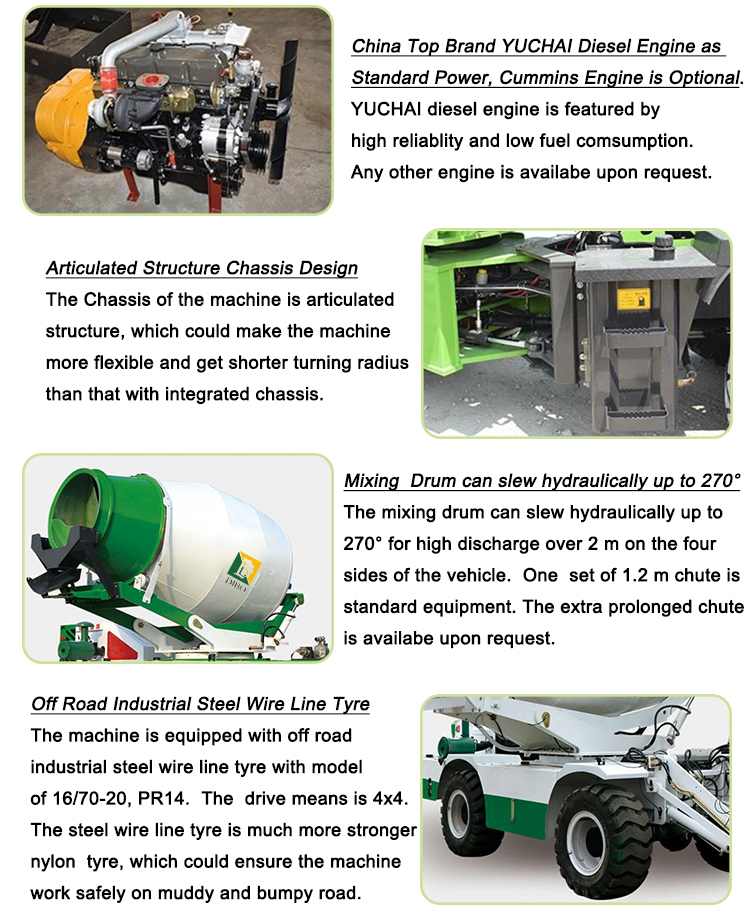

Main Advantages

1) China top brand YUCHAI diesel engine as standard Power, Cummins engine is Optional;

2) Articulated Structure Chassis Design for shorter turning radius;

3) Mixing unit can slew hydraulically up to 270°;

4) Bottom hydraulic lifting mechanism for easy discharge of material;

5) Teeth fitted shovel completed with hydraulic opening gate;

6) Off road industrial steel wire line tyre (Model:16/70-20, PR14);

7) Rear location of water tank;

8）Professional after-sale service teams;

9）Providing equipment operation training;

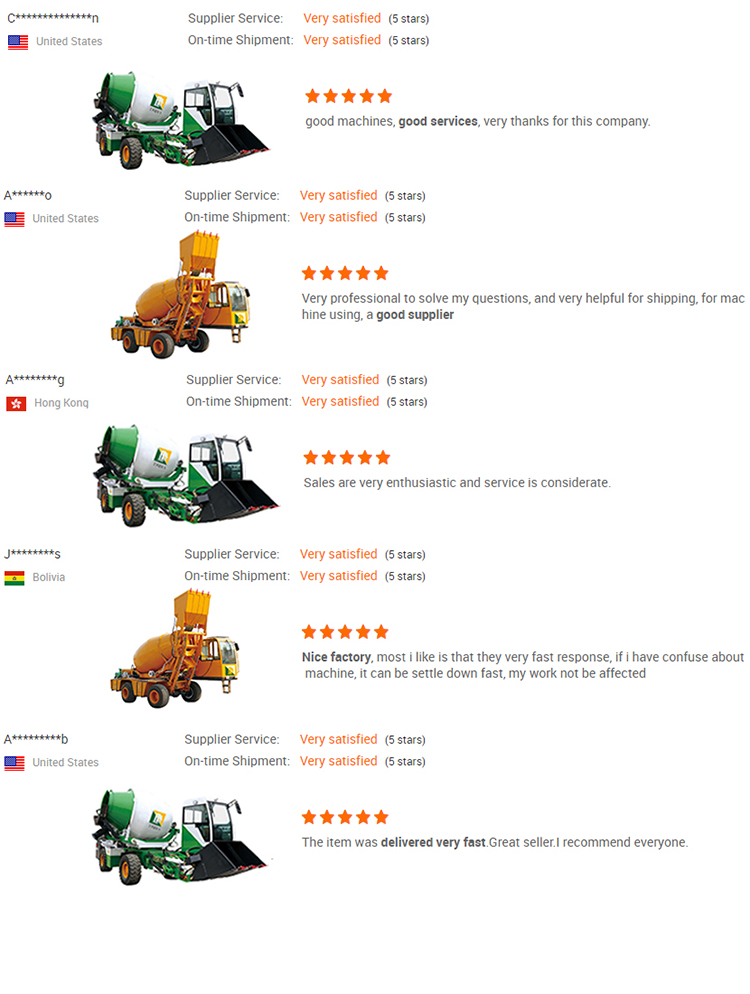

Buyer Feedback

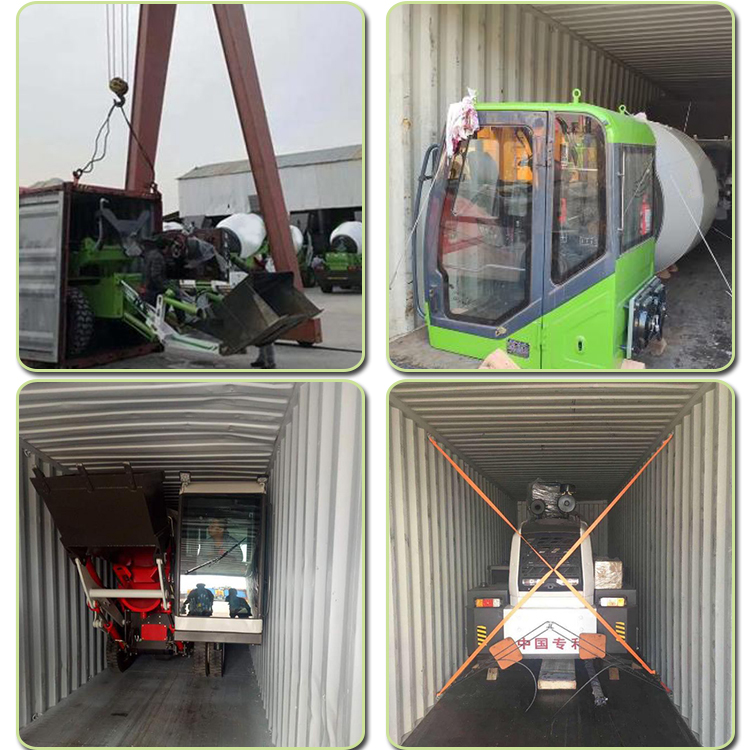

Packing

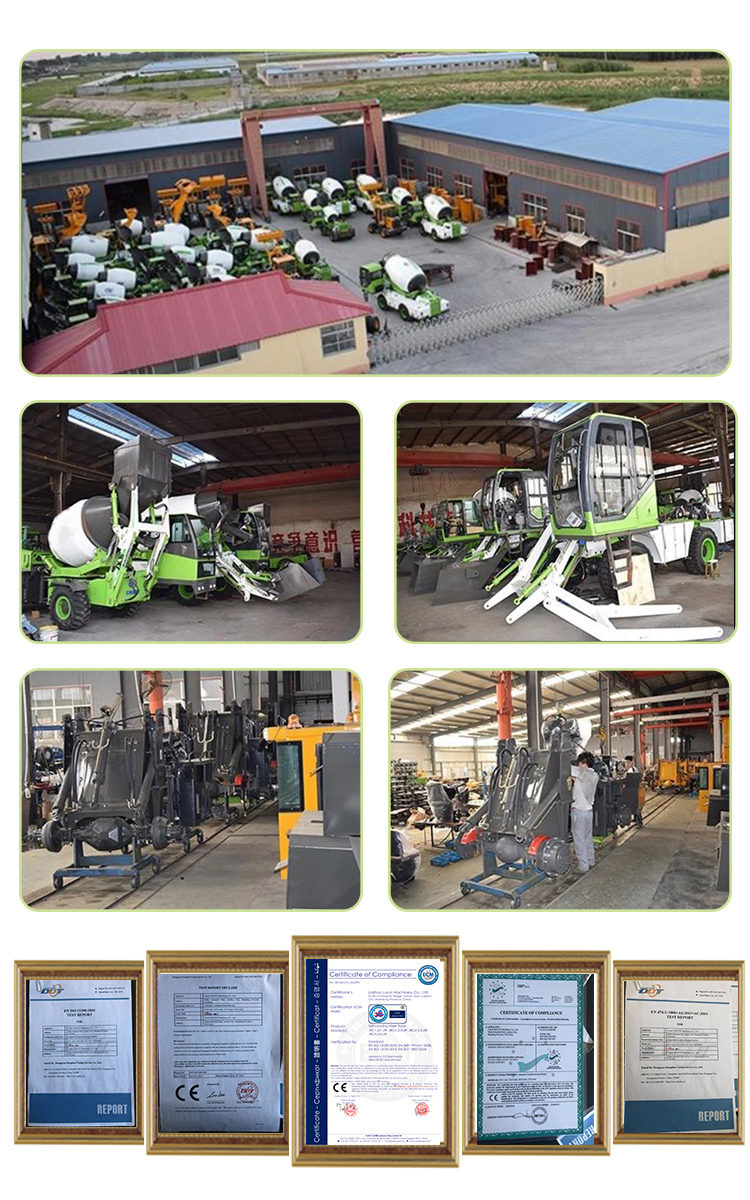

About Us

Yantai Dibo Machinery Equipment CO., LTD is a professional manufacturer of self loading concrete mixers,wheel loaders and hydraulic breakers in China.Our company has 15 years’ experience in the production and export to more than 20 countries, such as：
America,Canada, Australia, United Kingdom, Norway, Finland, Chile, United Arab Emirates, Ghana, Pakistan, India, Cambodia etc.We have passed CE, CQC, ISO 12100:2010, EN 474-1:2006+A4: 2013+AC: 2014 etc.

Sincerely hope that our equipment can bring you a good experience.
