Walking Tractor

15HP Walking Tractor

INQUIRY

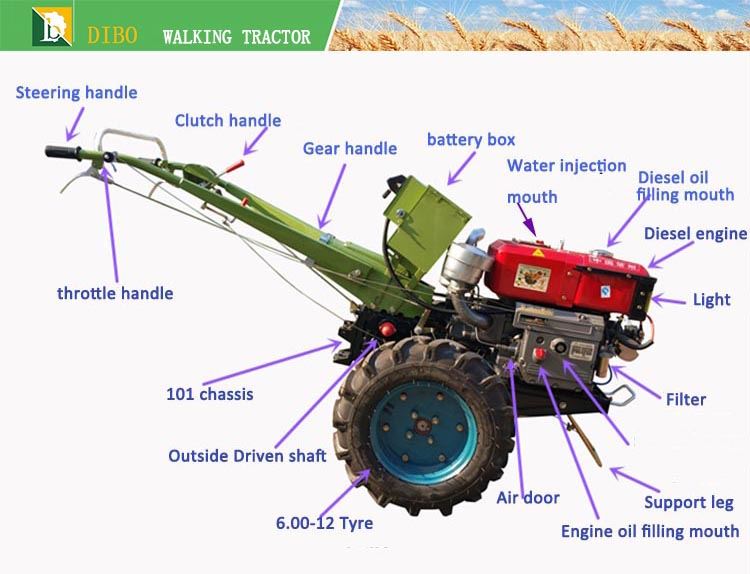

15HP Walking Tractor Advantage

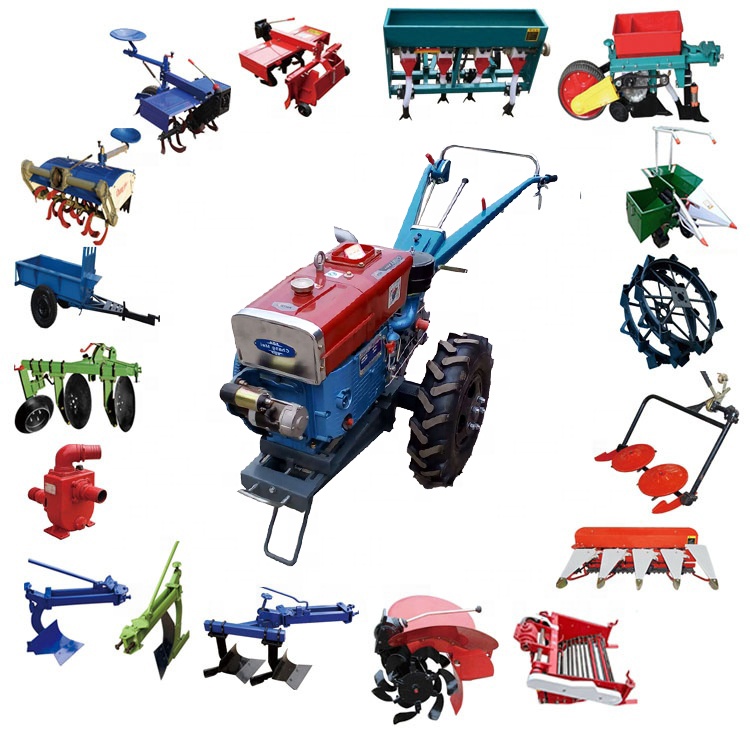

Walking tractor is a multi-purpose walking machinery composed of engine chassis and electrical system mainly used for traction and transportation. The driver holds the handframe, controls the operating mechanism, and pulls or drives the supporting agricultural machinery for operation.Can be used for greenhouses, vegetable fields, flower farms, orchards, paddy fields, hillside

15HP Walking Tractor Parameter

Model	DB15-151
Structure Weight (kg)	360kg without rotavator
	480kg with rotavator
Working weight	505kg（with rototiller and rubber wheels）
	530kg(with rototiller and iron wheels)
Overall dimensions (L X W X H)(mm)	2680x960x1250
Number of blades(Pcs)	24PCS, 26PCS
Rototiller width(mm)	900 or 1000
Rototiller depth(mm)	300
Type of tractor	Single axle, dual –purpose for both tractor and drive
Traveling Speed(km/h)	Forward	1.4,2.5,4.1,5.3,9.4,15.3
	Reverse	1.1,3.8
Tyre size	600-12 Off-road rubber wheel(paddy field anti-skid water wheels available)
Wheel track(mm)	800,740,640,580 (normally use 800)
Min.ground clearance(mm)	185
Min.turning radius(m)	1.1
Model of engine	ZS1100 diesel
Type of engine	Horizontal, Single cylinder, 4-stroke
Number of cylinders	single cylinder
Cylinder diameter	100mm
Piston stroke	115mm
Total displacement(L)	0.913
Turing speed of crankshaft	2200
Rated power	15HP- 11.03 kw
Specific fuel consumption(g/kw.h)	≤320
Specific lube oil consumption(g/kw/h)	≤2.72
Cooling model	Water cooling
Start model	Hand start
Package	Engine by plywood box, chassis by wear foam
20GP Quantity	20PCS
40HQ Quantity	50PCS
